What are various check valve types?

thumbnail

A check valve, clack valve, non-return valve, reflux valve, retention valve or one-way valve is a valve that ordinarily allows fluid (liquid or gas) to flow through it in barely one direction. Check valves square measure two-port plugs that mean they need two openings within the body, one for fluid to enter and therefore, the different for fluid to leave.

There square measure varied varieties of check valves utilized in the right kind of application. Check valves square measure usually a part of standard home goods. Though they’re on the market in an exceedingly wide selection of sizes and prices, check valves typically square measure terribly tiny, dull, or cheap.

The bodies (external shells) of most check valves square measure products of plastic or metal. Check valves square measure usually used with some varieties of pumps. Piston-driven and diaphragm pumps such as metering pumps and pumps for chromatography commonly use water and outlet ball check valves. The top check valve manufacturers manufacture several check valve types.

These valves usually appear as if tiny cylinders hooked up to the pump head on the water and outlet lines. Several similar pump-like mechanisms for moving volumes of fluids around use check valves like ball check valves. The feed pumps or injectors which provide water to steam boilers are fitted with check valves to forestall back-flow.

The valve that wont to stop back flowing in an exceedingly piping system is thought of as a check valve. It’s conjointly referred to as a non-return valve or NRV. The pressure of the fluid passing through a pipeline opens the valve, whereas any reversal of flow can shut the valve. It permits full unclogged flow and mechanically shuts as pressure decreases. The precise operation can vary betting on the mechanism of the valve.

Check valve Varieties

Tilting Disc Check Valve

The tilting disc check valve is meant to beat a number of the weaknesses of typical swing check valves. The look of tilting disk permits the valve to open absolutely and stay steady at lower flow rates and shut quickly once the forwarding flow stop. The dome-shaped disc floats within the flow and fluid flow on each bottom and high of disk surfaces. Because the disk is spring-loaded, once forward flow pressure reduces, the spring force helps the valve to shut quick. Within the image on top of, you’ll be able to see be due to the valve.

Ball sort and Plug sort carry Check Valve.

The seat style of a carry Check valve is comparable to a Globe valve. A piston or a ball is typically used as a disk. Lift Check valves square measure notably appropriate for hard-hitting service wherever the speed of flow is high. The disk is utterly attacking the seat with full contact. They’re appropriate for installation in horizontal or vertical pipelines with upward flow.

Dual Plate/twin Disc Check Valve

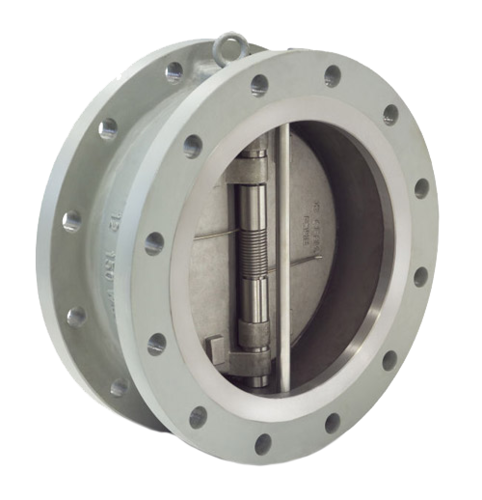

A twin-plate check valve is thought of like a butterfly check valve, Folding Disc Check Valves, double-disc, or split disc check valve. Because the name suggests, two halves of the disk move towards centreline with the forward flow and reverse flow two halves open and rest on the seat to shut the flow (Flapping action).

Stop Check Valve

Stop Check Valve could be a Combination of a carry check valve and a globe valve. It will either be used as a check valve or as Associate in Nursing isolation (stop) valve sort of a globe valve. These valves are closed with the assistance of a stem that isn’t connected to the valve disc throughout the traditional operation and create it attainable to use these valves as a daily check valve.

However, once required, the stem is employed to hold the free-floating disc against the valve seat, even as a globe valve. These valves square measure on the market in tee, wye, and angle pattern. Swing sort and piston carry sort check valves square measure usually used as stop check valves.

Conclusion

The only operate of a Non-return valve is to forestall backflowing. There’s no higher various. Yes, you’ll be able to select the simplest check valve from the varied on the market sort that you just learned. However, you can’t supplement the check valve with another valve.
